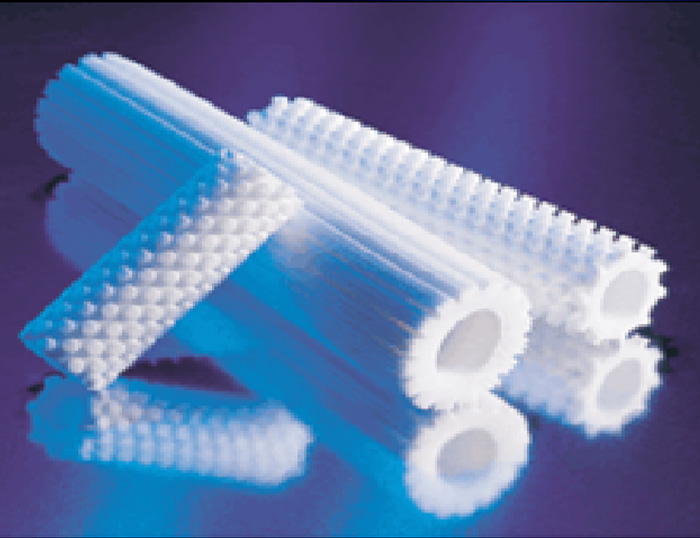

Noodular Brush

Explaination

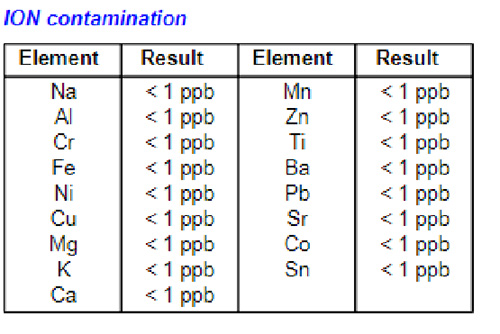

We Ruixintai provide PVA products for key cleaning processes in the semiconductor and hard disk industries, and provide customized services to meet customer's requirements for each unique application or further development of PVA products. Our products not only provide excellent cleaning results, but also do not cause product recontamination due to their minimal particles, ions and extractable residues.Meanwhile,due to the nature of PVA, surface scratches are impossibe.

Characteristics

Ruixintai PVA sponge brush has been widely used in the mature CMP process.Its high water permeability formulation increases the total water flow of the brush. Each product has undergone rigorous measurement and characterization analysis to ensure 100% consistency of all shipped products. We have implemented a new core design , which makes the brush size, water flow distribution, and self-cleaning ability of the brush better and more uniform. The cleanliness of each brush is quantified by the outflow liquid particle count (LPCs). All products are labeled with a two-dimensional code, which uniquely defines the characteristics of the brush (CoA data) to achieve traceability of each batch.

Applications tools

Applied Materials

Mirra Mesa (200mm)

Reflexion (300mm)

Ebra

EPO Series(200mm)

F*REX (300mm)

Lam

OnTrack(200mm)
